SKEMA 800
Woodworking
Wood pantographing
Wood milling

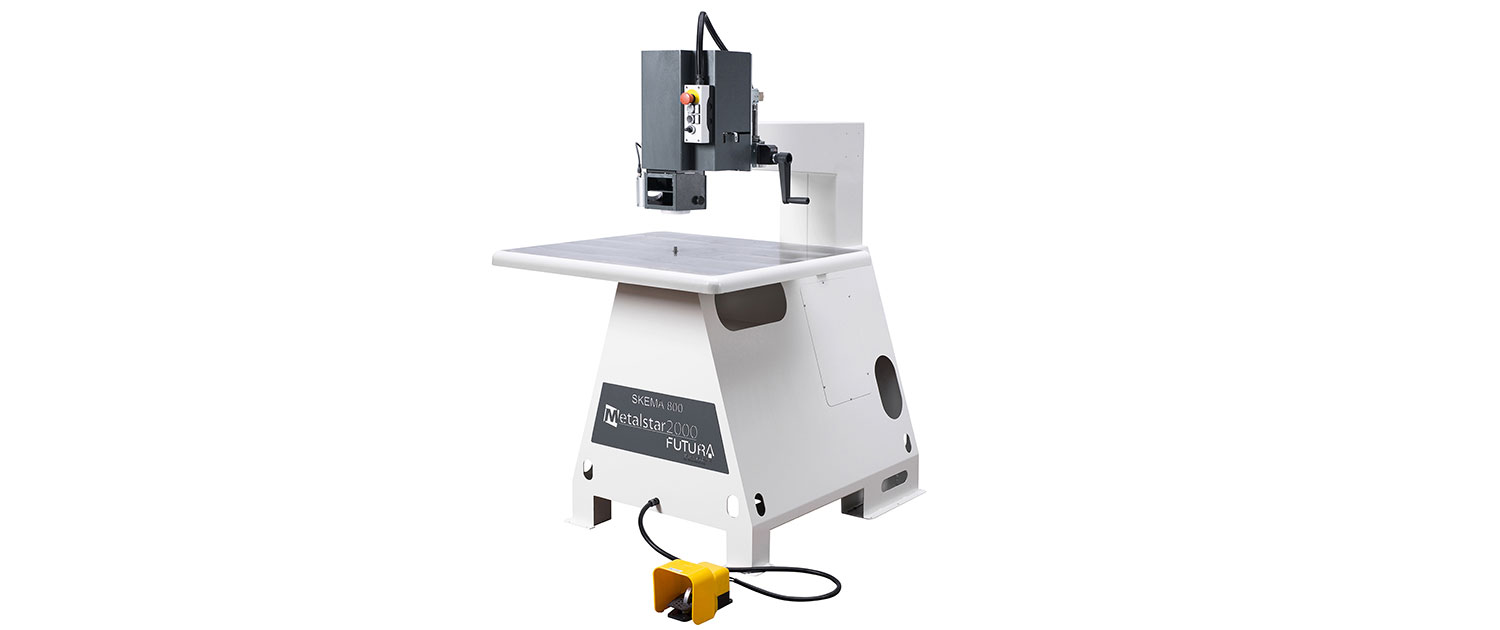

Pantograph, Vertical Milling Machine SKEMA 800
Vertical pantograph for joineries, carpenters and diy woodworking.
The worktable guarantees a high reliability of the machine: it is a stable support even for large pieces.
Operating unit supplied with 2,2 Kw electrospindle with ER25 morse spindle taper.
Advantages in wood milling
MILLING HEAD
Operating unit equipped with a 5-stop turret.
WORKTABLE
Comfortable worktable even for processing large pieces.
ER25 MORSE SPINDLE TAPER
Nr. 1 ER25 morse supplied.
SPINDLE ROTATION SPEED BY INVERTER
Spindle rotation speed from 3.000 to 18.000 g/min.
IN COMPLIANCE WITH EU REGULATIONS.
Machine compliant with EU regulations.
100% MADE IN ITALY PRODUCTION
Its base, and in general the whole machine body and part of the internal small metal parts are produced on site, with our own numeric control milling cutters.
In fact, Futura Woodmac works in synergy with Metalstar 2000 for any machining needs with its 3 departments: i.e. the sheet metal laser cutting, the welding and the numeric control milling cutters departments.

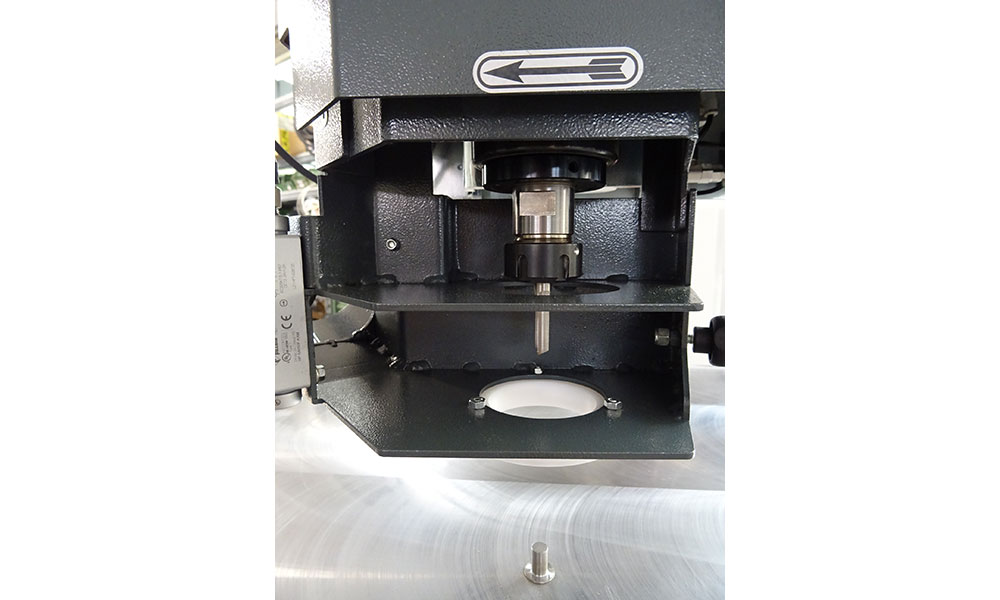

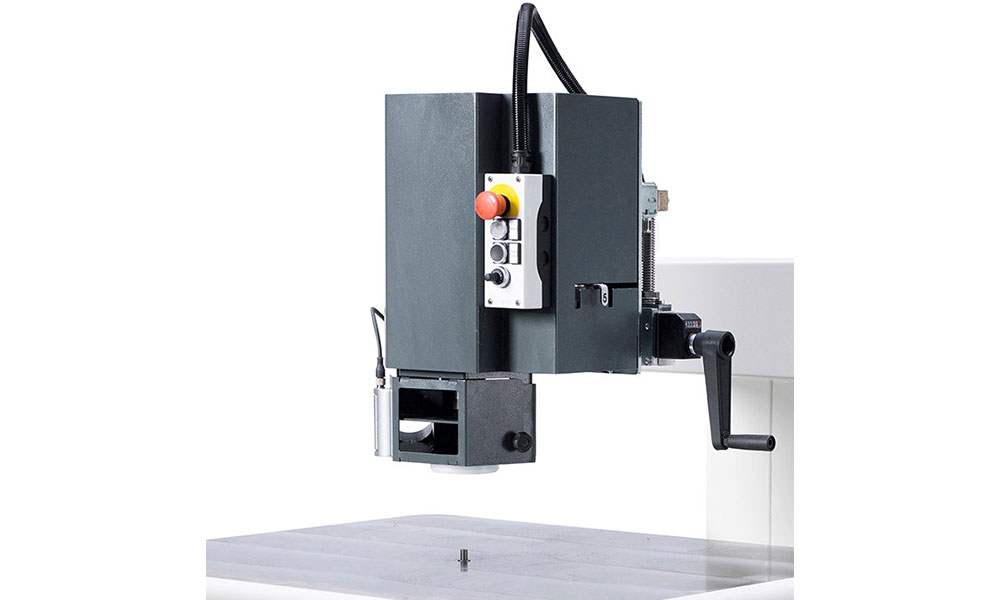

Milling head
Milling head equipped with an electro-spindle with rotation speed from 3.000 to 18.000 g/min.
The unit is equipped with a 5-stop adjustable turret for quick operation changes.
Collet supplied
Machine equipped by 1 of 9-10 mm ER25 collet.

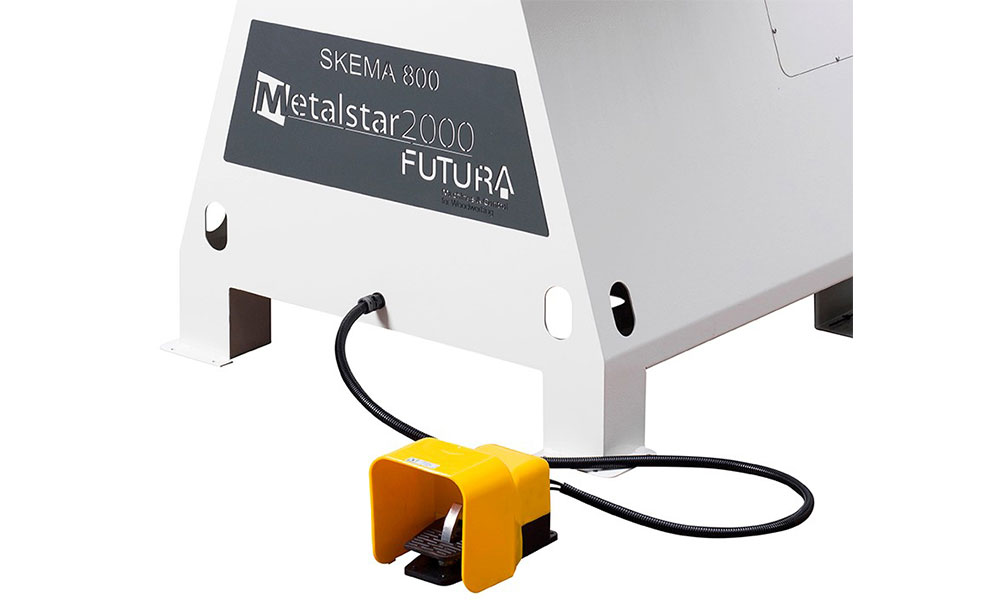

Remote push-button panel
Remote push-button for starting the machining cycle.
When the pedal is pressed, the pneumatic milling unit lowers and the bit does not stop until the pedal is released.

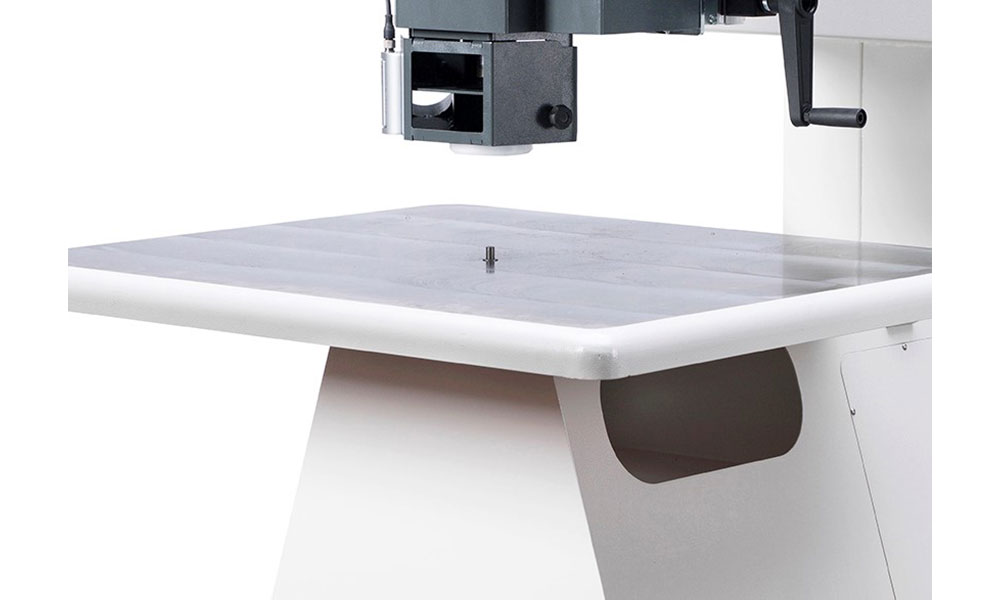

Worktable
It is a stable support even for large pieces.
SKEMA 800: Technical Layout and Overall Dimensions
Figure 1

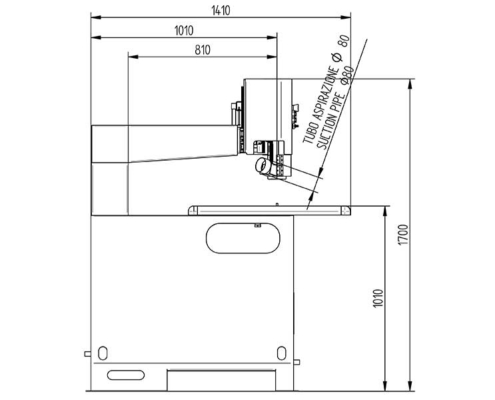

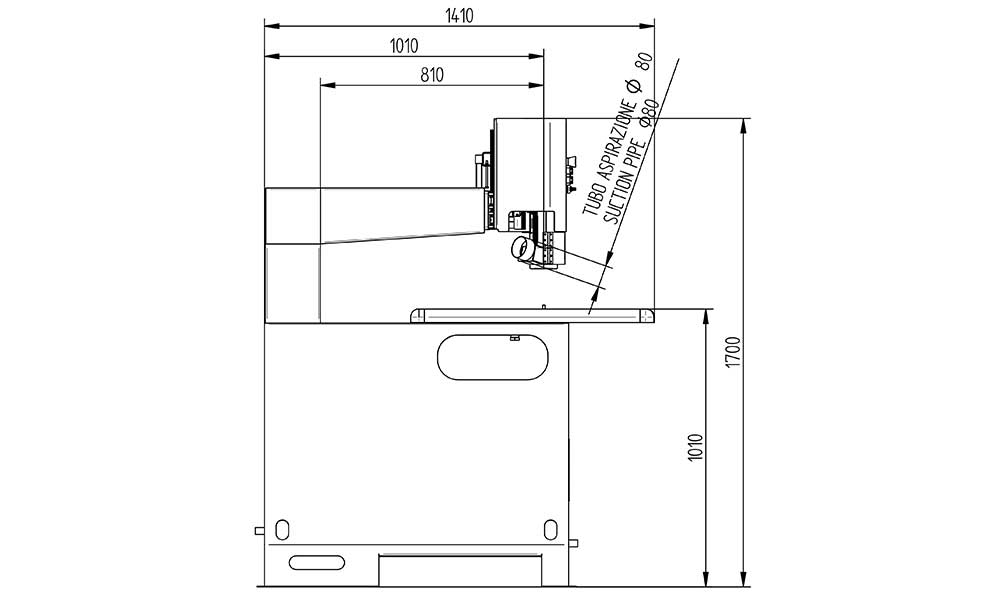

SKEMA 800 (SIDE PLAN)
Figure 2

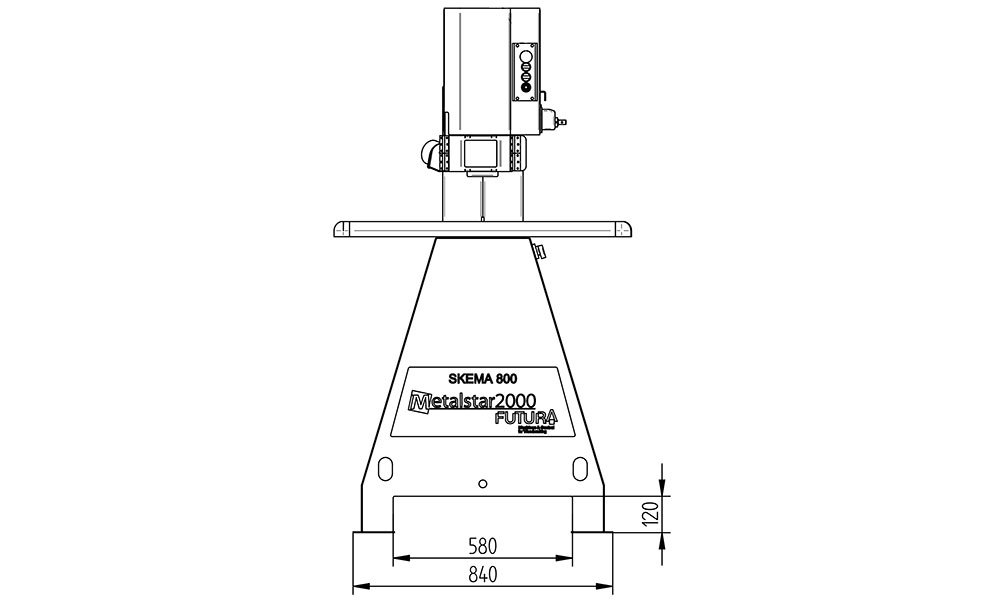

SKEMA 800 (FRONT PLAN)

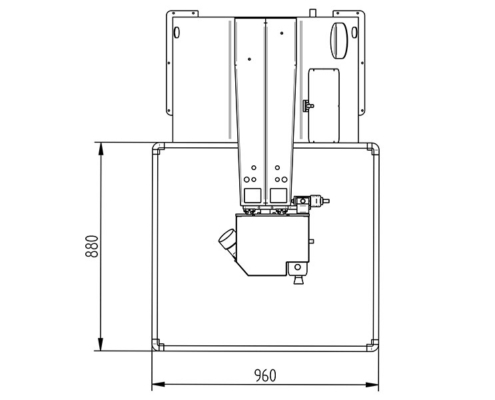

Figure 3

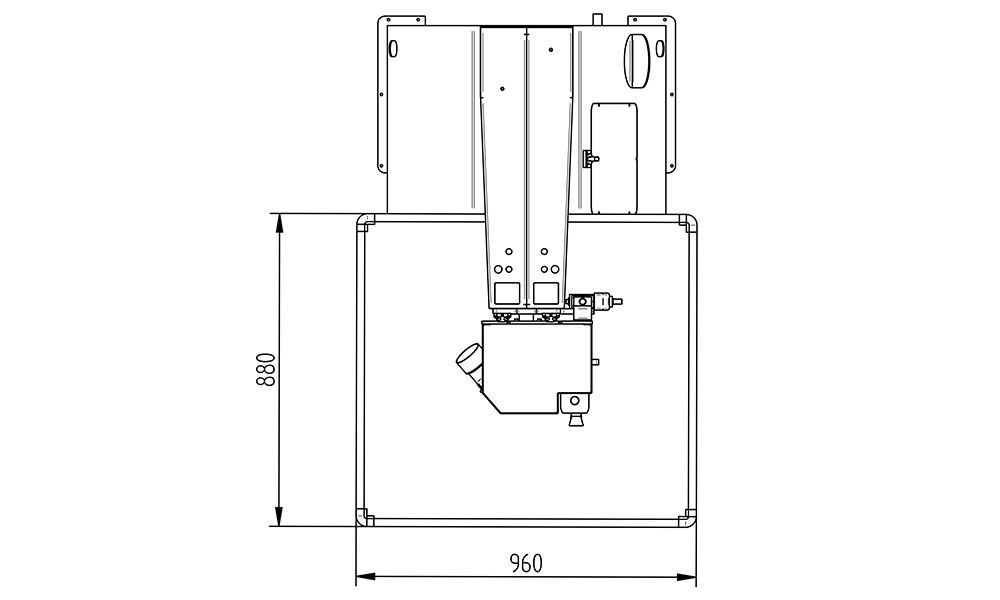

SKEMA 800 (PLAN FROM ABOVE)
SKEMA 800: Technical and Optional Features
| SPINDLE – FRAME DISTANCE | 800 mm |
|---|---|
| SPINDLE ROTATION SPEED | 3000 / 18000 rpm (variable managed by inverter) |
| Motor power | KW 2,2 |
| Vertical spindle stroke | 80 mm |
| ADJUSTABLE STOPS | 5 |
| Head vertical stroke | 65 mm |
| MAXIMUM WORKTABLE – SPINDLE DISTANCE | 150 mm |
| WORKTABLE DIMENSION CE VERSION | 960 x 880 mm |
| MAXIMUM WORKTABLE HEIGHT FROM FLOOR | 1000 mm |
| NET WEIGHT | 290 kg |
