straightening on 4 sides
planing on four sides
remove the crooked and/or raw part of the wood
remove the wood imperfections

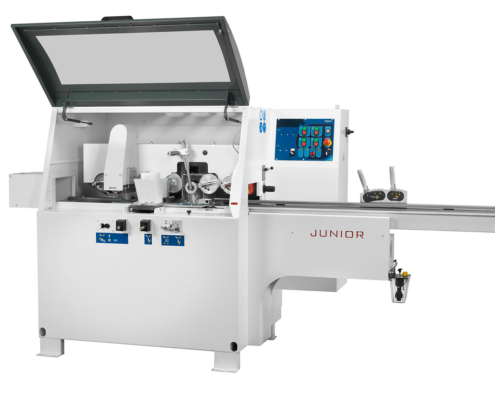

Planer and four sided planer JUNIOR
JUNIOR is a compact and efficient straightener particularly suitable for small joineries, with CE marking and auto braking motors.
Smallest but ultra-modern in mechanics’ concept
The machine is equipped with Poly-V belts to ensure maximum motor efficiency, air blowers for a better smoothness of the wood that can be further helped by a drop by drop system that mixes air and oil for resinous and wet woods.
The machine JUNIOR, with 4 spindles, ensures a perfect straightening of the wood without vibrations.
The maximum working sections are 180mm wide and 130mm high.
The minimum working sections are 25mm wide (15mm opt) and 8mm high.
Thanks to the compact design, the machine can process single pieces of 270mm length.
Innovation and its compactness are the characteristics that make it unique.
JUNIOR can be moved by pallet truck, allowing easy handling within the factory.
Compact drive system
Thanks to the reduced thickness, these belts are very flexible and can be suitable even for heavy-duty performances.
Our pulleys are designed and manufactured with the utmost precision for a perfect fit with the belt grooves.
An optimal & highly silent synergy that does not transmit vibrations.

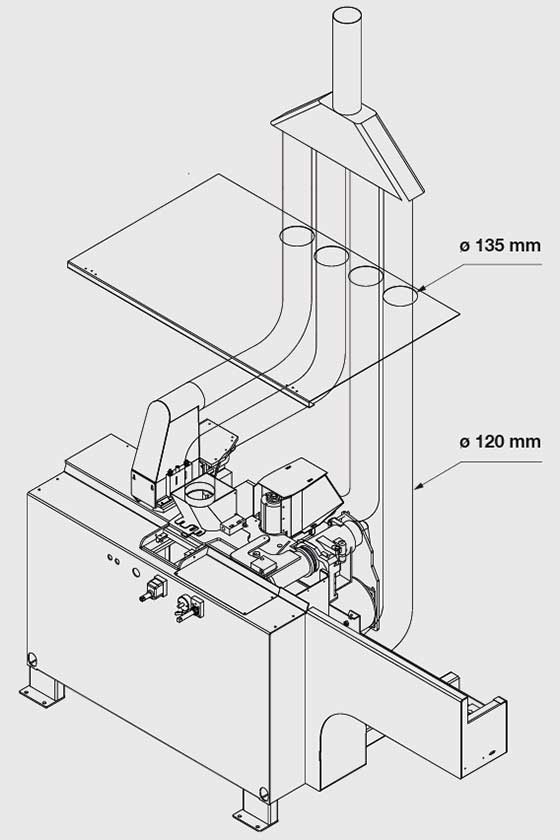

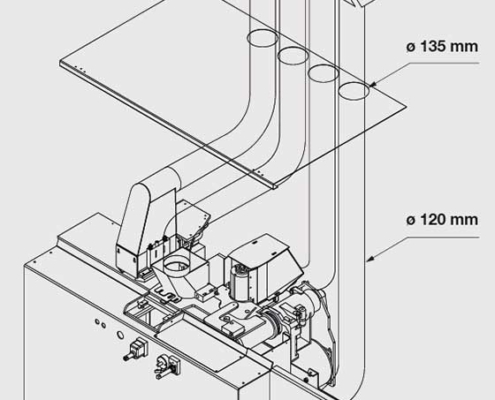

Less dust is equivalent to energy saving
Suction system designed for a long-lasting machine.
Hoods have been designed for a constant and easy wood chips flow, thus significantly reducing power consumption.
Low power-consumption solutions
The drive is made up of a motor-gearbox to make the most of the motor’s kW: a power transmission that is synonymous with innovative, power-saving solutions.

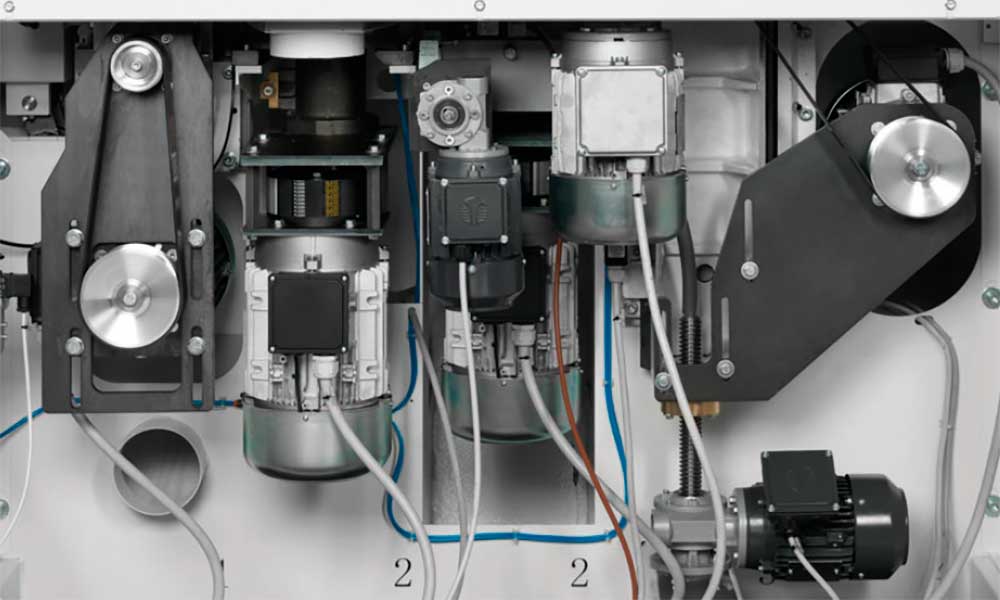

Each operating unit is equipped with its own motor.
Possibility of installing a motor that adapts to the machining operations required.
Air blowers and atomisation of the worktable
Even for the more problematic categories of wood pieces correct handling will be ensured.
The system can be integrated with oil-air mixed atomisation to further improve wood pieces conveying.
Monobloc machine bed
Machine bed and top beam designed to ensure high rigidity and stability of the machinery.
Both are built with a monobloc iron structure, stabilized, sandblasted and painted with epoxy-polyester powder resistant to impact, light reflections and weather for durability.
