BUMERANG S1
Machine Automation
for Edgebanding Machines

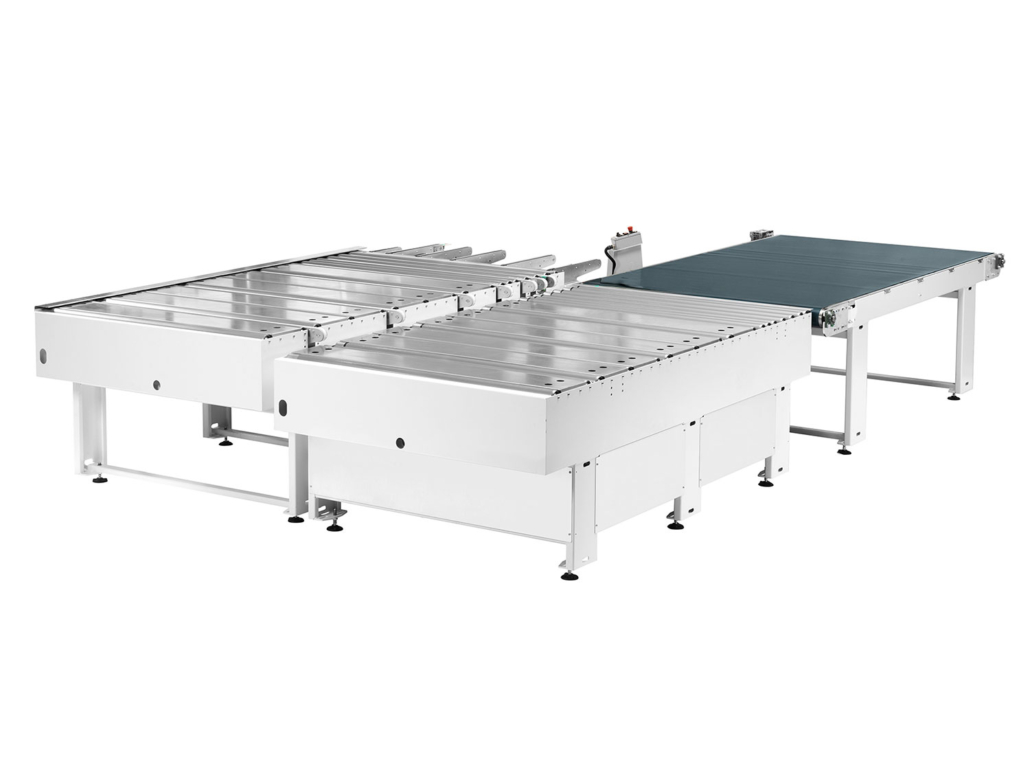

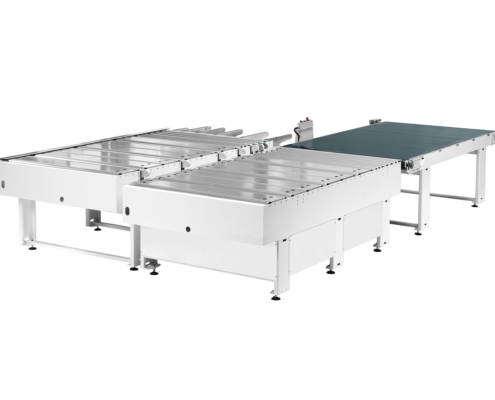

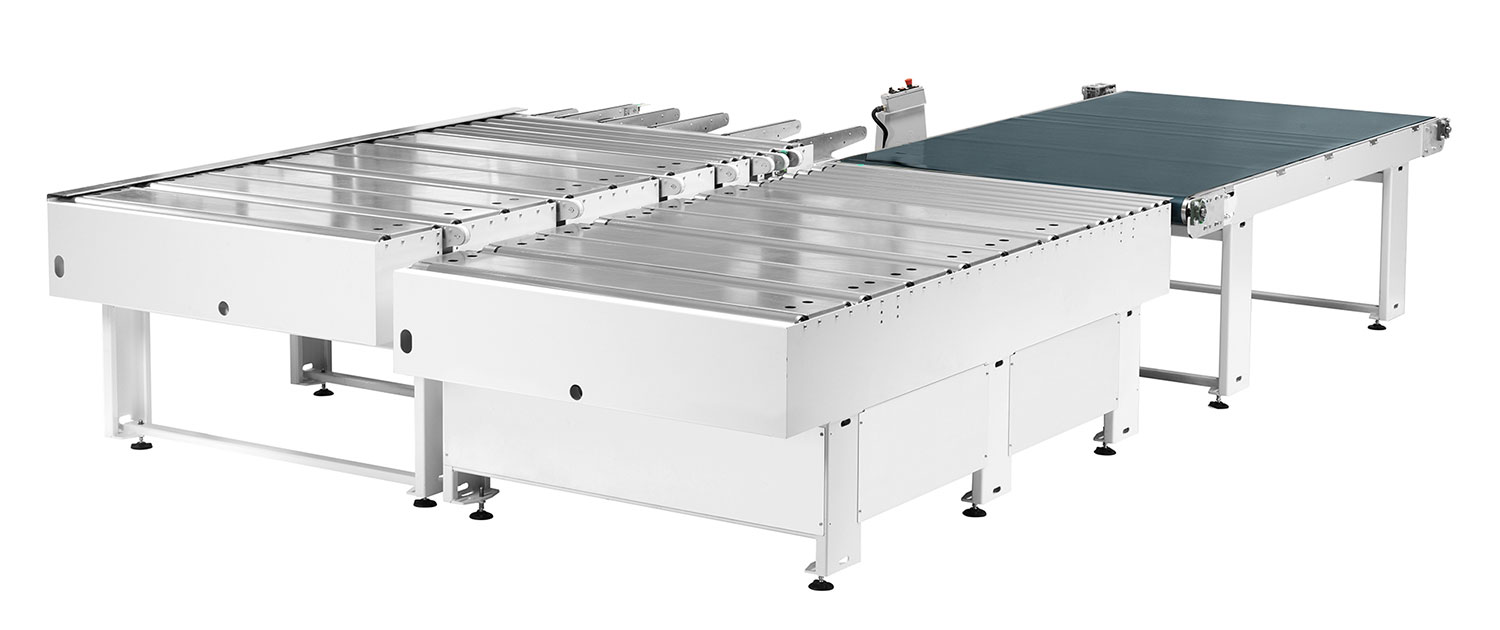

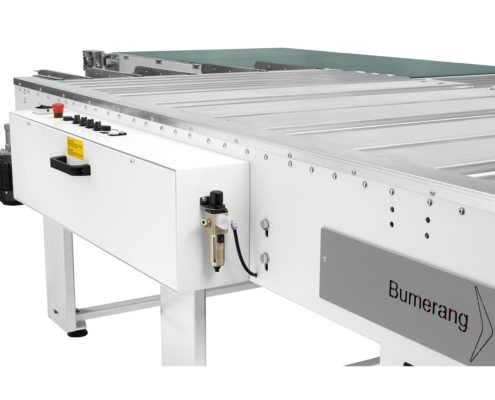

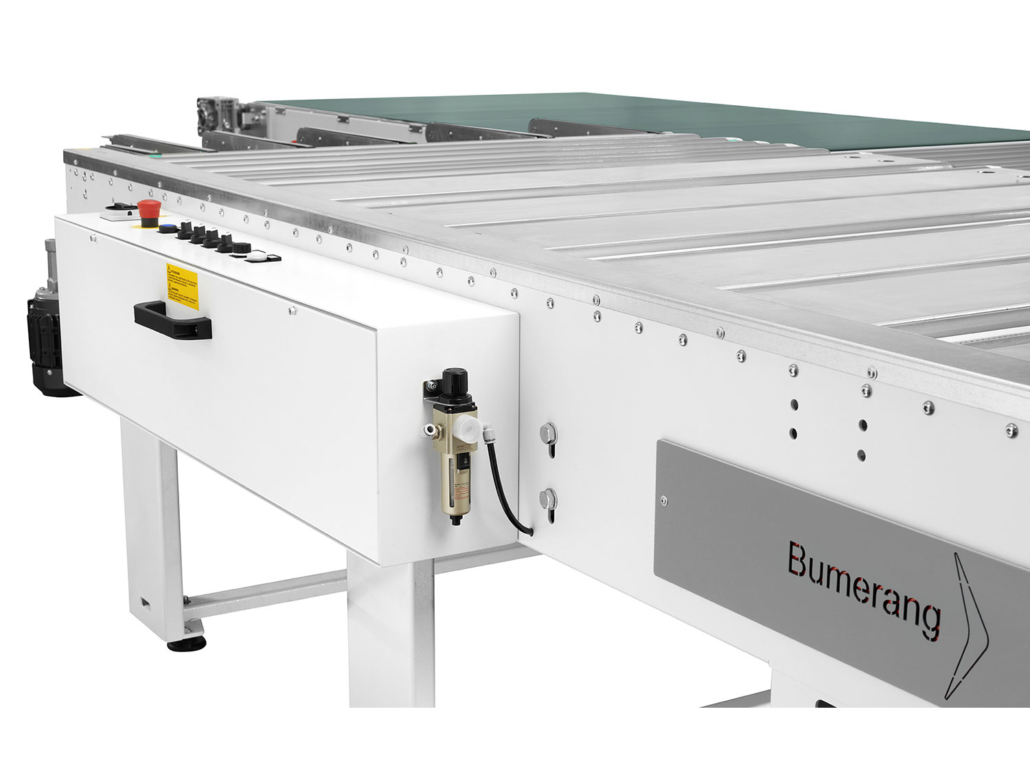

BUMERANG S1 workpiece return roller conveyor
The BOOMERANG S1 workpiece return roller conveyor is the optimal complement to your edgebanding machine: an excellent automatic wood panel handling system that was created as a perfect addition to single-layer edgebanding machines.
Thanks to this Futura Woodmac solution, the workpiece return system to the operator’s station minimizes the use of personnel while increasing the profitability of the edgebanding machine, regardless of the type of production (on order, series or batch).
With its sturdy and stable design, the roller conveyor connected to the edgebanding machine brings significant benefits to both large industrial enterprises and, where automation is becoming increasingly popular, small businesses.
In addition, the automatic handling system, operated through the Boomerang (with rollers, belts, and conveyor belt), makes it possible to process parts and panels (whether large or small) of all sizes.
Advantages in Panel Handling
EASY HANDLING
Easy handling of the automation system, with concrete effects on productivity and a real increase in productivity.
Continuous flow, until the panel returns to the operator.
ROBUST STRUCTURE
Electro-welded steel structure.
GREATER PANEL INTEGRITY
The piece return has been designed with rollers, belts and conveyor belt to avoid damaging the panels being processed.
CUSTOMISATIONS
To perform a perfect job, the piece return roller conveyors must adapt with equal perfection to the machinery that precedes them.
The changes are therefore essential and included in the package offered by Futura Woodmac which, through its technical office, will manage each customization of the roller conveyor through a specific three-dimensional project.
IN COMPLIANCE WITH EU REGULATIONS
Machine produced according to the CE regulations in force.
IN-HOUSE PRODUCTION
The machine body and part of the internal small parts are made in-house, with its own numerically controlled milling machines for metalworking.
Futura Woodmac in fact works in synergy with Metalstar 2000, which has 3 departments at the service of the necessary processing: the sheet metal laser cutting department, the welding department and the CNC milling machines department.
Arms for workpiece input into the roller conveyor
Machine complete with 5 arms with adjustable positioning to connect the edgebanding machine with the roller conveyor.
Each arm has a motorized belt to transport the workpiece into the roller conveyor.

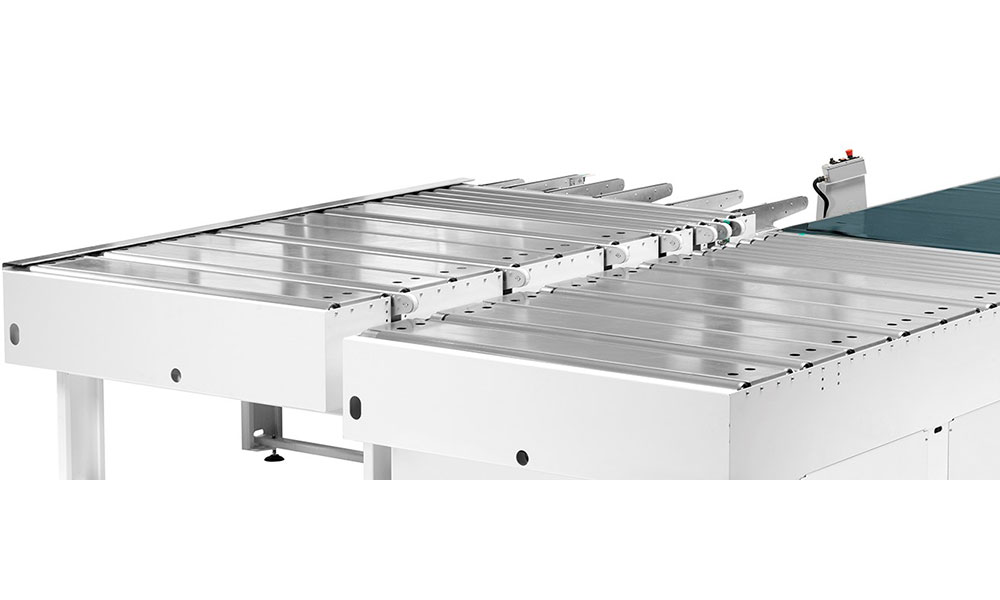

Sliding surfaces
Motorized sliding surfaces complete with rollers and belts to transport the panel to the belt.

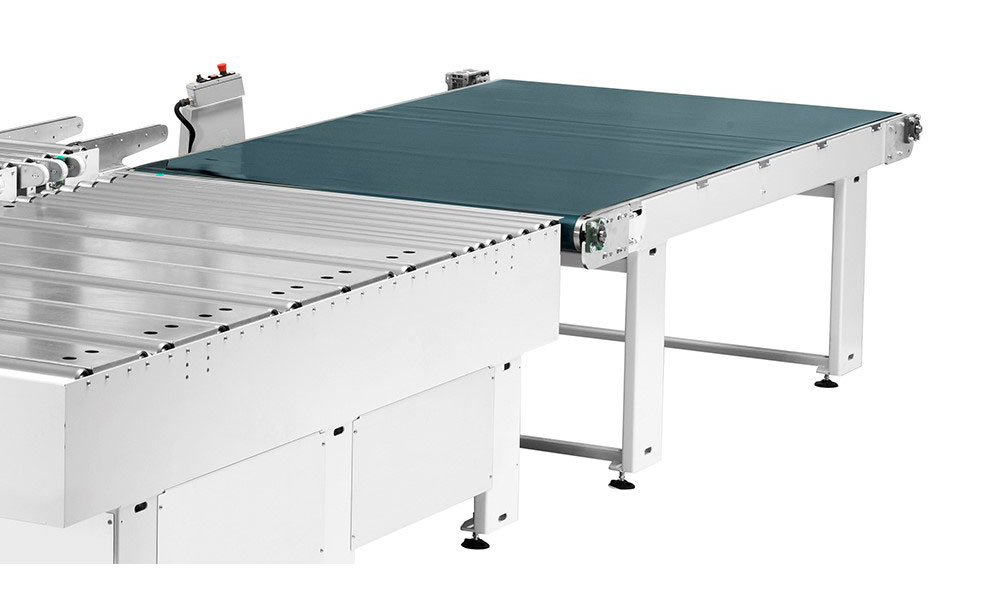

Conveyor belt
At the end of the stroke, the workpiece reaches the operator via the conveyor belt (with a width of 1500 mm and a length of 2700 mm).

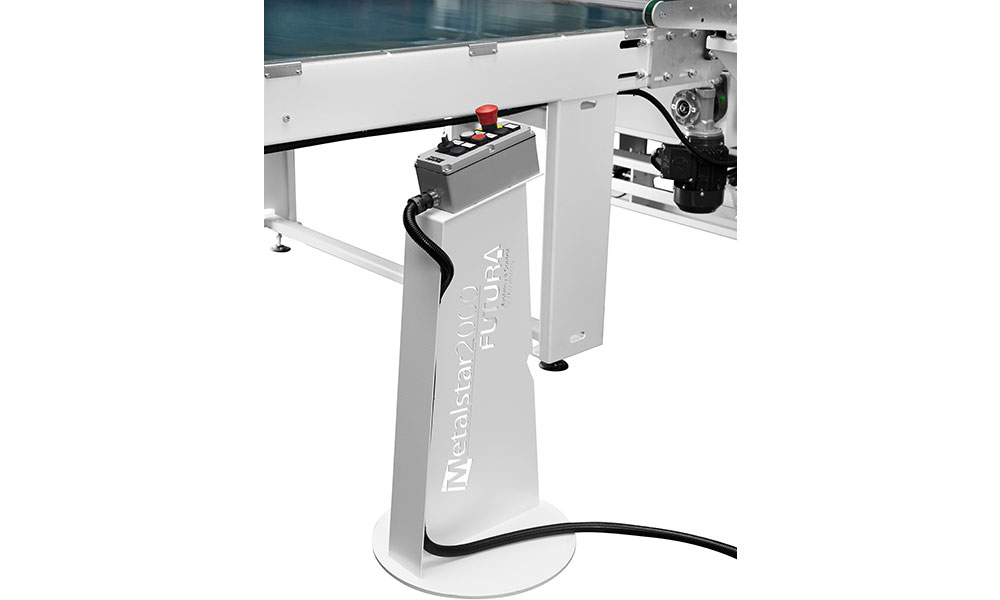

Remote control panel
For maximum efficiency and safety, the workpiece handling system can be operated by the operator (in a position in front of the edgebanding machine) via a remote push-button panel.
Thanks to this device, the machine operator can effectively start or stop the work cycle, operate the emergency system in the event of danger, and manage the unloading of linear material at the edgebanding machine.
Therefore, for each of these operations, it will not be necessary to return to the operator.
BUMERANG S1: Panel Handling Video
BUMERANG S1: Technical Layout and Overall Dimensions
Figure 1

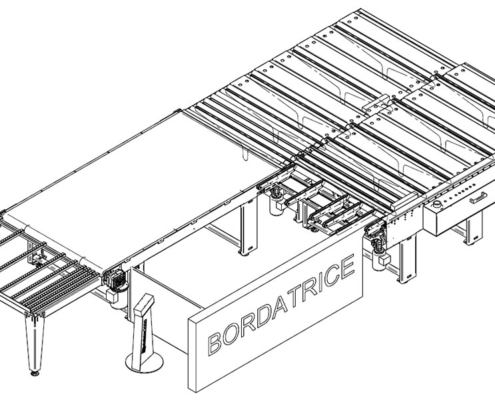

BUMERANG S1 (GENERAL PLAN)
Figure 2

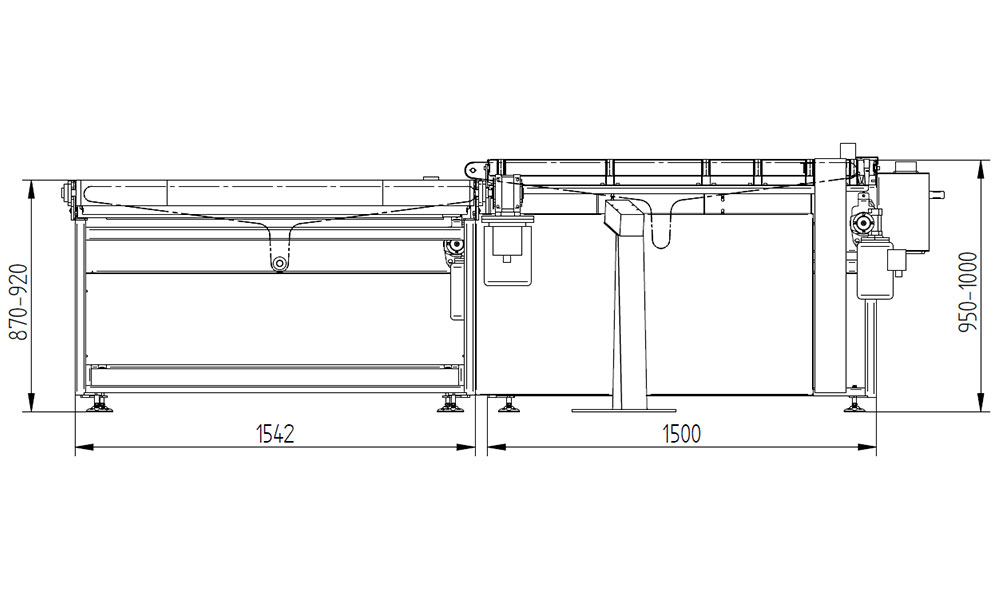

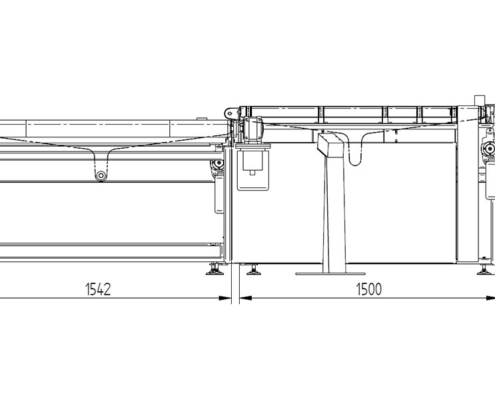

BUMERANG S1 (FRONT PLAN)

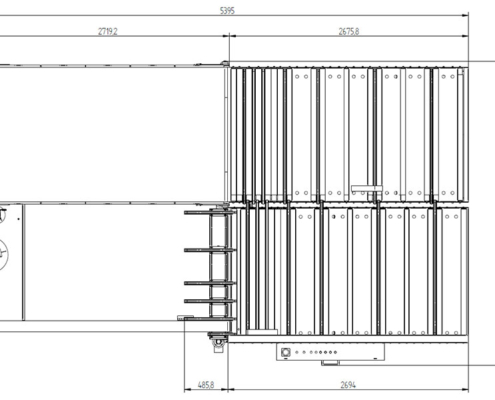

Figure 3

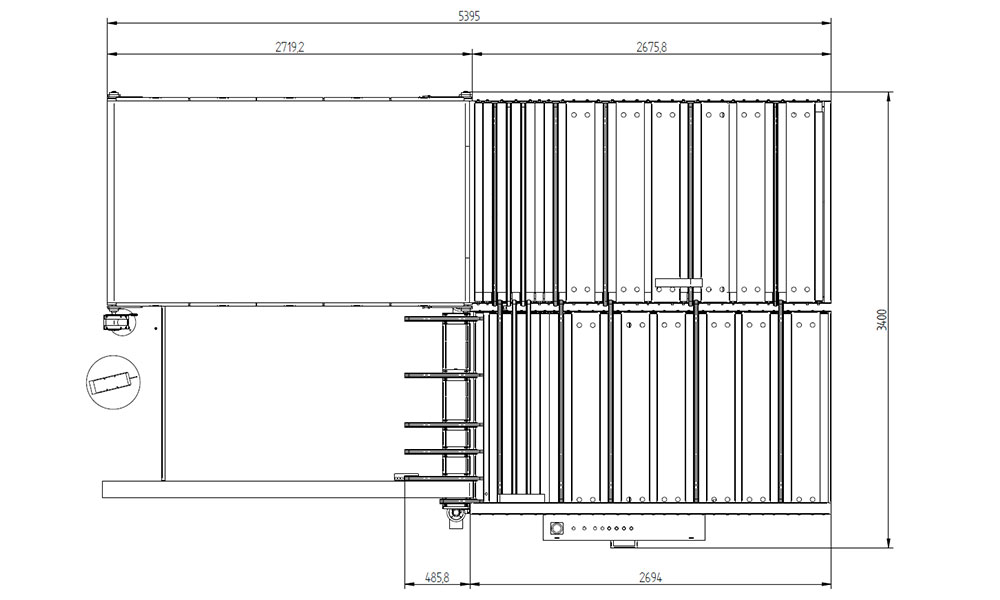

BUMERANG S1 (PLAN FROM ABOVE)
BUMERANG S1: Technical Features and Customisations
| Min – Max workpiece Length | 150 – 2500 mm |
|---|---|
| Min – Max workpiece Width | 50 – 1500 mm |
| Max Weight | 100 kg |
| Feeding speed | 25 mt/min |
Customisations
| Maximum integration between roller conveyor and edgebanding machine, with 3D design customised by our engineering department. |
